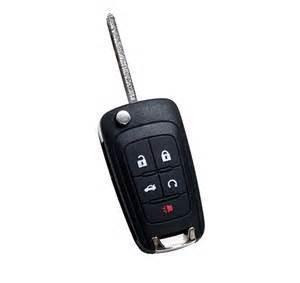

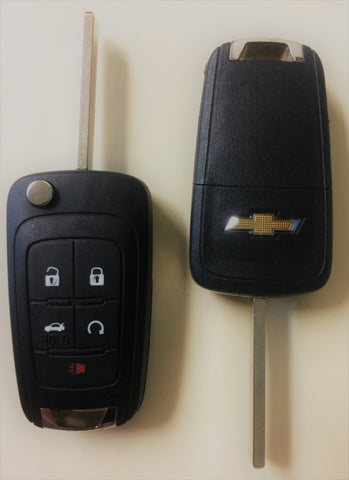

Chevy 2010-2017 Remote Head Flip Key (NON-Peps/Prox) - OE #13504199

  • $7500
  • Save $97

Save to my Wishlist

FCC: OHT01060512

OE #: 5912545

Buttons Info: L,U,T,P,RS

CHIP ID: Philips ID 46 Ext


Buttons Lock
Remote Start
Works on the Following Models Chevrolet Camaro 2010-2016
Chevrolet Camaro Convertible 2012-2013
Chevrolet Cruze 2011-2015
Chevrolet Equinox 2010-2017
Chevrolet Impala 2014-2017
Chevrolet Malibu 2014-2016
Chevrolet Sonic 2012-2017
Frequency 315 Mhz
Part Number Strattec 5912545, OEM #13504199
FCC ID OHT01060512
IC 5461A-01060512
Test Key HU100
Reusable Yes after Unlocking
Battery CR2032

This remote is cross-compatible with other 2010+ high security type flip keys, but does NOT work with proximity (PEPS) models.


Programming Instructions: Adding Keys (North America, except Canada): Note: • To initiate, this procedure requires that a learned master key be available. If learned master key is not available contact a locksmith with the proper specialized programing equipment. • A total of 10 keys may be programmed to a single vehicle. • This procedure adds keys only. The procedure does not erase previously learned keys. • The keys to be learned must duplicate the mechanical cut of the current key. • If more than one valet key is to be learned, immediately precede each valet key with a learned master key. 1) Place an already programmed key in the keyway (ignition). Cycle the ignition from OFF to ON. 2) Within 15 seconds, insert the new, properly cut transponder key in the ignition. Turn the key to ON (RUN) or START. The “security” indicator light will go on and off. Turn the key “OFF”. 3) The key will now start the car. Repeat the second step for each new key to be programmed.
