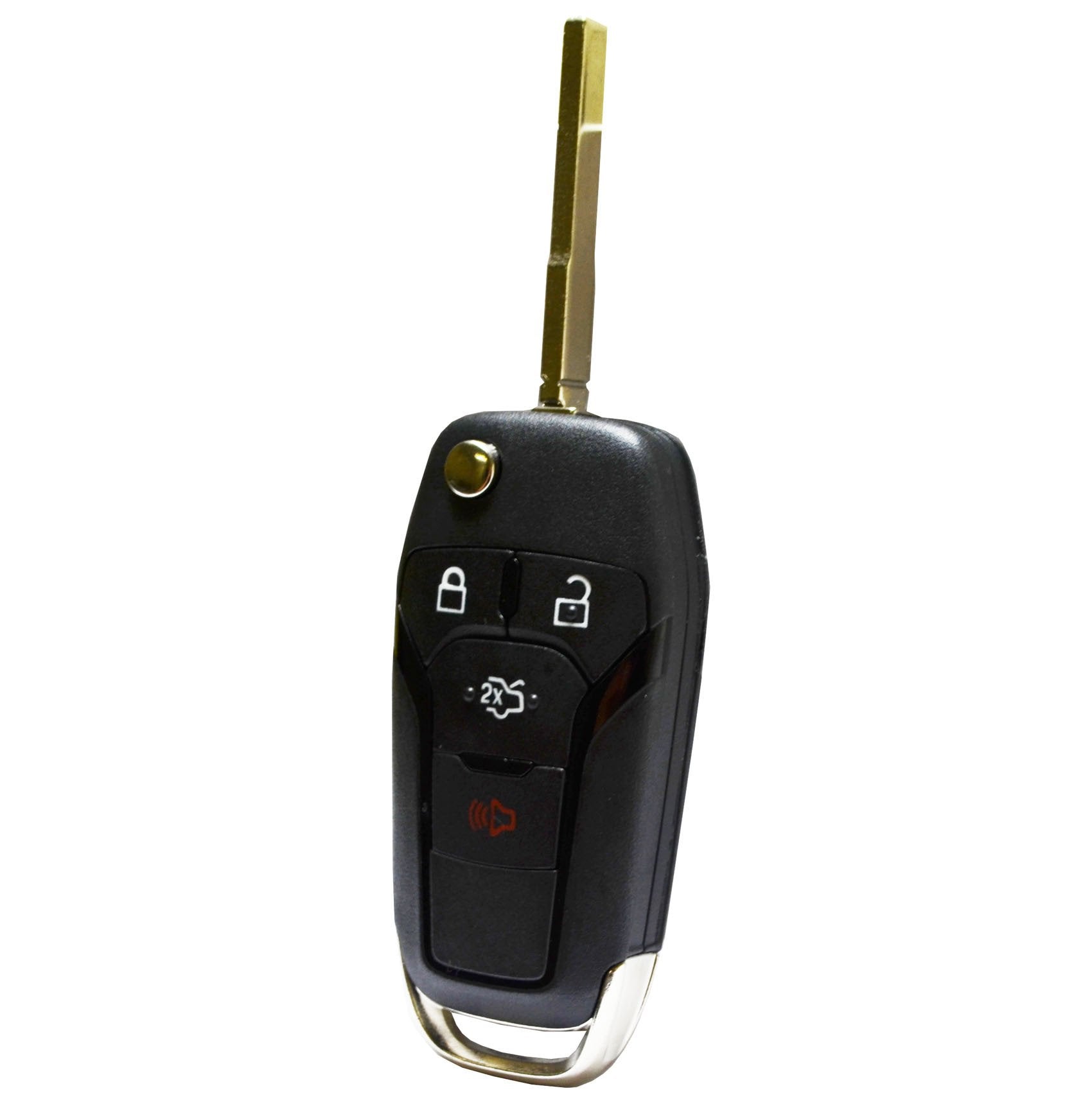

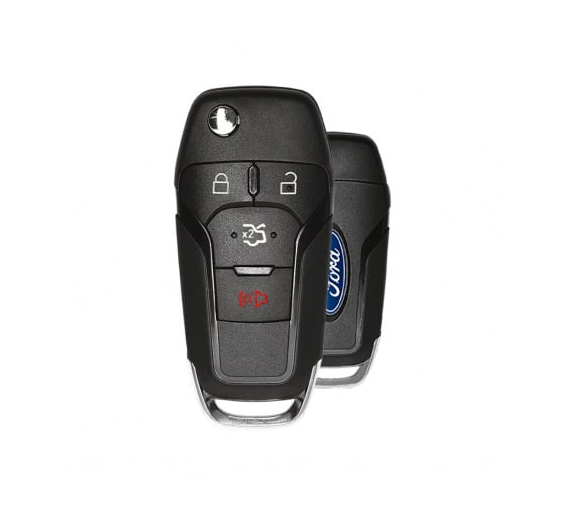

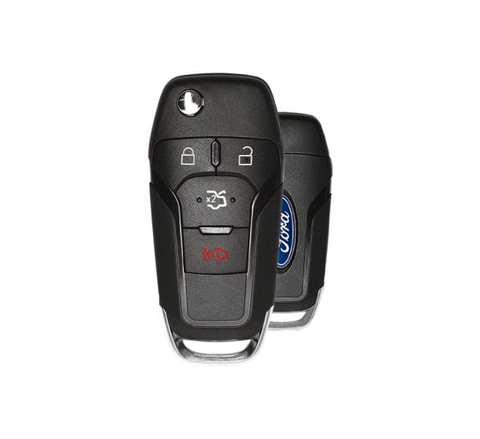

2013-2020 Ford Fusion Explorer Remote w/ Flipout Key 164-R7986 - Original FCC: N5F-A08TAA

  • $1485

Save to my Wishlist

Works on the Following Models: Ford Fusion 2013-2016
Ford Explorer 2020
Buttons: Lock
OEM Part #(s): Strattec 5924003
Ford OEM 164-R7986
BlueRocket BRK-RH-FOR-08 (#3102)
Compatible FCC ID: N5F-A08TAA
Compatible IC: 3248-A08TAA
Frequency: 315 Mhz
Chip: 49 Chip (128-bit)
Test Blade: HU101
Emergency Key: N/A
Battery: CR2032
Condition: New Aftermarket
Reusable: Yes

** NOTE - These will work on 2015 F-150 as long as the FF150 does NOT have remote start! **


WARNING:Please note that unlike the more expensive Strattec brand, the remote portion of all aftermarket Ford remote head keys such as this key does not program along with the chip using your diagnostic tool. Please program the buttons using the standard Ford on-board programming process, as follows:

  1. Turn any key in the ignition 6, 8, or 10 times until door locks cycle. (In later models you will hear a chime rather than door locks cycle)
  2. Within 20 seconds press any button on the remote(s) you are programming, locks will again cycle to confirm remote was programmed.
  3. Turn ignition to off postion. Locks will cycle one last time confirming car has exited programming mode. Test remote(s).

IMPORTANT NOTE: If you have trouble getting your vehicle to enter programming mode try buckling the driver and passenger-side seatbelts.


Not for nothing, but I had a locksmith customer tell me that the above procedure did not work on his 2015 Escape but how he got the job done was the following...

First he used his MVP to get the chip programmed to the car and get the car started. Then he shutdown the car and buckled the seatbelt and made sure the door was closed before starting the procedure of adding the remote function. He put the key into the ignition, turned the car on, pressed a button on the remote, the door locks cycled to show it was in program mode, then the car took the remote. This procedure may help you.

    Note, In a pinch these will work on the 2015 F150 as long and the F150 Does NOT have remote start!!
